All About Flux Core Welding

FCAW: The Workhorse Welding Process You Should Know

When it comes to joining metals in demanding environments, Flux-Cored Arc Welding (FCAW) often stands out as a reliable and efficient workhorse. From heavy construction and shipbuilding to pipeline welding and repair work, FCAW’s versatility and productivity have made it a staple in various industries. But what exactly is FCAW, and why is it so popular? Let’s dive in and explore the ins and outs of this powerful welding process.

At its core, FCAW is an arc welding process that uses a continuously fed consumable tubular electrode containing a flux. This flux is the key differentiator from other wire-fed processes like Gas Metal Arc Welding (GMAW or MIG). As the welding arc is established between the electrode and the base metal, the flux melts and performs several crucial functions:

• Deoxidation and Degasification: The molten flux reacts with impurities like oxides and nitrides in the weld pool, removing them and preventing porosity, which weakens the weld.
• Arc Stabilization: The flux helps to create a more stable and consistent arc, leading to a smoother weld bead and better penetration.
• Slag Formation: A protective layer of slag forms on top of the molten weld pool. This slag shields the hot metal from atmospheric contamination as it solidifies and also helps to shape the weld bead.

One of the significant advantages of FCAW is its ability to be used in two distinct modes: self-shielded and gas-shielded.

Self-Shielded FCAW (FCAW-S): Go Anywhere, Weld Anything (Almost)

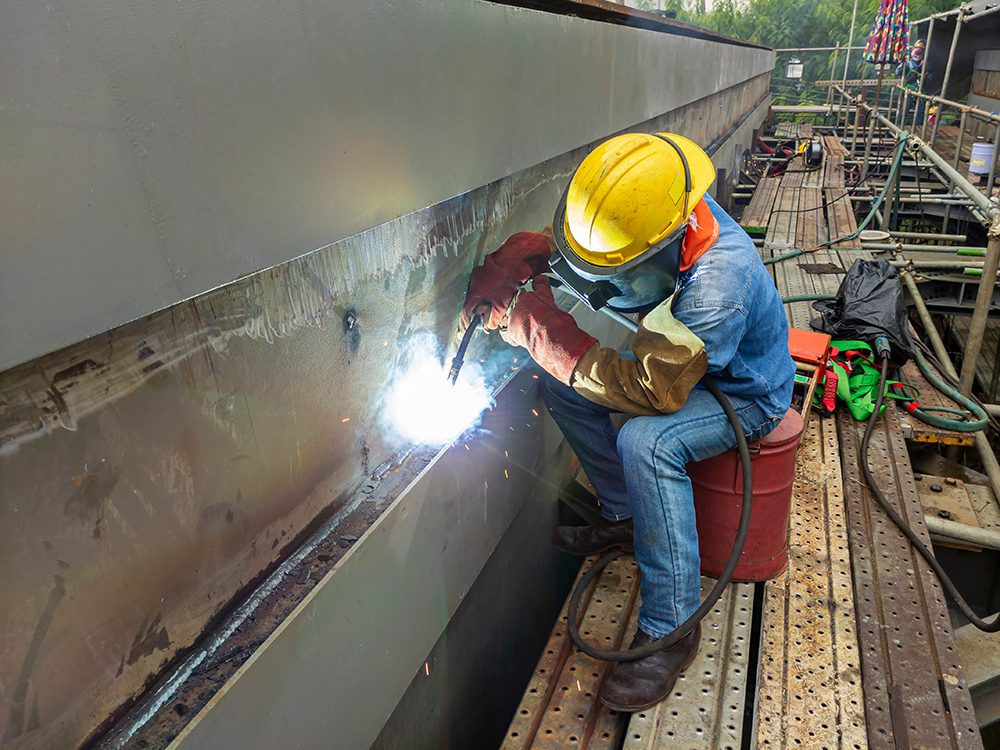

In self-shielded FCAW, the flux core itself contains all the necessary ingredients to protect the weld pool from the atmosphere. As the electrode melts, these elements generate a gaseous shield around the arc, eliminating the need for an external shielding gas supply. This inherent portability and ease of setup make FCAW-S incredibly attractive for fieldwork, structural steel erection, and situations where dragging gas cylinders is impractical or unsafe.

Think about a construction crew working on a high-rise building or a pipeline welder miles away from a gas supply. Self-shielded FCAW allows them to get the job done efficiently and effectively without the added complexity of external shielding gas. While it offers great convenience, self-shielded FCAW typically produces more spatter and a thicker slag layer compared to its gas-shielded counterpart. Certain material types and critical applications might also necessitate the superior atmospheric protection offered by external shielding gas.

Gas-Shielded FCAW (FCAW-G): Enhanced Protection and Weld Quality

Gas-shielded FCAW, as the name suggests, utilizes an external shielding gas in addition to the flux core. This gas, typically a mixture of argon and carbon dioxide (CO2) or straight CO2, provides an extra layer of protection against atmospheric contamination, resulting in cleaner welds with better mechanical properties and less spatter.

The combination of the flux core and the external gas shield offers a synergistic effect. The flux contributes deoxidizers and arc stabilizers, while the shielding gas provides consistent and reliable atmospheric protection. This makes FCAW-G well-suited for applications requiring high weld quality, such as welding thicker materials, critical structural components, and certain grades of steel. While it requires the added complexity of a gas cylinder and delivery system, the improved weld quality and efficiency often outweigh this drawback in shop environments and controlled settings.

Why Choose FCAW? The Benefits Unveiled

FCAW offers a compelling set of advantages that contribute to its widespread use:

• High Deposition Rates: The continuous wire feed and the efficient arc transfer allow for faster welding speeds and higher deposition rates compared to processes like Shielded Metal Arc Welding (SMAW or stick welding). This translates to increased productivity and reduced project completion times.
• Good Penetration: FCAW generally provides good weld penetration, making it suitable for joining thicker materials and creating strong, reliable welds.
• All-Position Welding Capabilities: While some FCAW electrodes are better suited for specific positions, many are designed for all-position welding (flat, horizontal, vertical, and overhead), offering greater flexibility for various applications.
• Tolerance to Contaminated Base Metals: Compared to GMAW, FCAW is generally more tolerant to mill scale, rust, and other surface contaminants, reducing the need for extensive pre-cleaning in some applications.
• Versatility: With the option of self-shielded and gas-shielded modes, and a wide range of flux-cored wires available for different materials, FCAW can be adapted to various welding tasks and environments.

The Flip Side: Potential Drawbacks

While FCAW boasts numerous benefits, it’s essential to consider its potential drawbacks:

• More Spatter than GMAW (especially FCAW-S): Self-shielded FCAW, in particular, tends to produce more spatter than GMAW, requiring more post-weld cleanup. Gas-shielded FCAW generally produces less spatter.
• Slag Removal: The slag layer that forms on the weld bead needs to be removed after each pass, which adds a step to the welding process.
• Fumes: Like all arc welding processes, FCAW generates fumes that require proper ventilation and personal protective equipment.
• Equipment Cost: While the basic welding machine might be similar to a GMAW machine, the cost of flux-cored wires can sometimes be higher than solid GMAW wires.

Choosing the Right FCAW Process and Consumables

Selecting the appropriate FCAW process (self-shielded or gas-shielded) and the correct flux-cored wire is crucial for achieving optimal results. Factors to consider include:

• Material Type and Thickness: Different flux-cored wires are designed for specific materials like carbon steel, stainless steel, and nickel alloys, and for various thickness ranges.
• Application Requirements: The required weld quality, mechanical properties, and the welding environment will influence the choice between self-shielded and gas-shielded FCAW.
• Welding Position: Some wires are better suited for specific welding positions than others.
• Cost and Productivity: Balancing the cost of consumables and shielding gas with the desired welding speed and quality is essential.

In Conclusion: FCAW – A Powerful Tool in the Welder’s Arsenal

Flux-Cored Arc Welding is a versatile and productive welding process that offers significant advantages for a wide range of applications. Whether you need the portability of self-shielded FCAW for fieldwork or the enhanced weld quality of gas-shielded FCAW for critical fabrications, understanding the principles and capabilities of this process is essential for any welding professional or enthusiast. While it has its drawbacks, the high deposition rates, good penetration, and adaptability of FCAW make it a powerful tool in the welder’s arsenal, ensuring it remains a workhorse in the metal fabrication industry for years to come.
